An award-winning system.
Back-to-back wins in the UK (winners in 2023, 2024 & 2025) with recognition in the USA and Australia.
The only true all-in-one system of its kind.
MHUB S outperforms AV over IP on things that matter the most - picture quality, latency and security - while giving complete venue control with lower cost of ownership and far simpler installs.
| Image |  |
 |
|
|---|---|---|---|
| Name | MHUB S | AV over IP (1G) | AV over IP (10G) |
| Setup | Single-brand, centralised, Plug & Play system | Requires networking knowledge / training | |
| Inputs | Up to 16 | Unlimited | |
| Displays | Up to 160 | Unlimited | |
| Range over Cat 6 | 150m/492ft 100m/328ft (1080p / 4K) |
100m / 328ft (1080p or 4K) |
|
| Video bandwidth | 18 Gbps (Best visuals) |
1 Gbps (Heavy compression) |
10 Gbps (Lighter compression) |
| Latency | 0.1ms (Zero latency) |
Between 30-50ms (Up to x300 slower) |
|
| System components | Everything included | Everything purchased separately | |
| Control | Built-in control system (uControl inside) |
Switching only / control system required | |
| System security | Isolated transmission, closed system, secure-by-design | Reliant on IT security layer (More vulnerable to network attacks) |
|
| Cost of ownership | £ Everything included + easy setup |
££ Skilled labour required to install, control system required |
££££ 10G infrastructure (switch/Cat 6a) + control system required |
Manuals & guides, software, drivers & media assets
Features
| Product code: MHUB S (8+8x8) 100A / 2.50.897 | MHUB S (16+16x16) 100A / 2.50.909 |
| Sold as a full kit including all display receivers, IR and mounting kits. |
| Stackable MHUB system supporting up to 160 displays. |
| HDR, HDR10, HDR10+, Dolby Vision* and HLG |
| 100m range (4K), 150m range (1080p) |
| Downscaling on all outputs |
| Line-level (Pre-Out) volume control on all outputs |
| Multi-channel digital audio support up to and including Dolby/Atmos and DTS:X |
| Dolby Atmos downmixing available on (MHUB S (16+16x16) 100ADM model only) |
| HDMI Output Mirrors |
| Video source or zone audio extraction modes |
| Adjustable output gain from -12dBu to +12dBu in 1dB steps |
| Bi-directional IR |
| Expanded IO capability (API pass through of IR and RS232 data) |
| CEC (for enhanced display control) |
| Built-in control system (uControl) |
| Remotely manageable |
| 5 years with cloud registration (2 years standard) |
Specification
| Video & audio IO | MHUB S (8+8x8) 100A Inputs: x8 HDMI / Outputs: x8 HDMI (Stacking Mirrors), x8 HDBaseT, x2 HDMI (Output Mirror), x8 Optical, x8 3.5mm Stereo MHUB S (16+16x16) 100A/DM Inputs: x16 HDMI / Outputs: x16 HDMI (Stacking Mirrors), x16 HDBaseT, x4 HDMI (Output Mirror), x16 Optical, x16 3.5mm Stereo |
| Video bandwidth | 18Gbps |
| Video resolution | Up to 4K@60Hz (4:4:4) with HDR |
| Colour space | RGB, YCbCr 4:4:4, YUV 4:4:4, YCbCr 4:2:2/4:2:0 |
| Colour depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K@60Hz) 10-bit, 12-bit (4K@60Hz YCbCr 4:2:2/4:2:0) |
| HDR formats | HDR10, HDR10+, Dolby Vision, HLG** |
| Transmission distance | 1080p (150m / 492ft), 4K 100m / 394ft |
| HDMI audio formats | PCM 2.0 / 5.1 / 7.1, Dolby Digital / Plus / EX, Dolby True HD, DTS, DTS-EX, DTS-96 / 24, DTS High Res, DTS-HD Master Audio, DSD |
| Audio extraction | Optical: PCM 2.0, Dolby Digital, DTS 5.1 3.5mm Stereo: LPCM 2Ch |
| Stereo audio formats | PCM 2.0 44.1 / 48 / 88.2 / 96 / 176.4 / 192KHz, 16 / 20 / 24bit |
| Output gain (1dB steps) | -12dBu — +12dBu |
| Max output level | -55dB — 0dB |
| Dimensions W/H/D (mm) | MHUB S (8+8x8) 100A Chassis: 440/88/362 MHUB S (16+16x16) 100A/DM Chassis: 440/132/398 Display receiver: 140/65/18 |
| Weight (g) | MHUB S (8+8x8) 100A Chassis: 4200, Receiver: 187 MHUB S (16+16x16) 100A/DM Chassis: 6300, Receiver: 187 |
Designed in the UK.

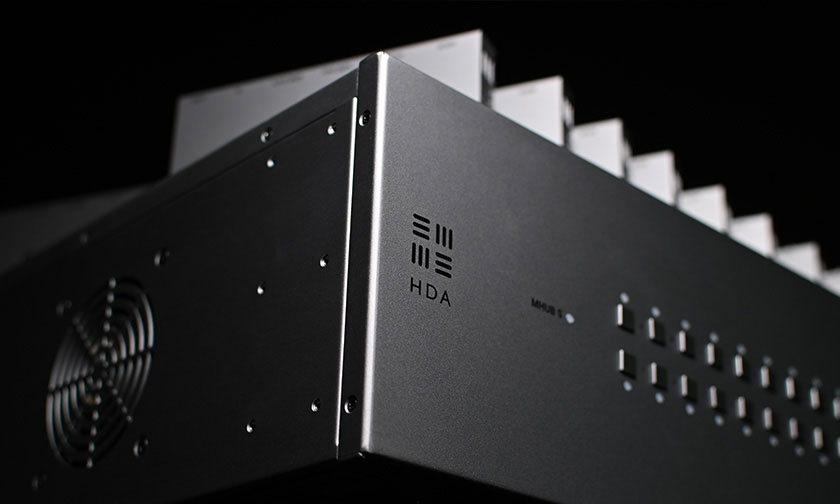

Crafted from premium materials like aluminum and steel, MHUB S reflects meticulous attention to industrial design - because even when it’s out of sight, the details still matter.

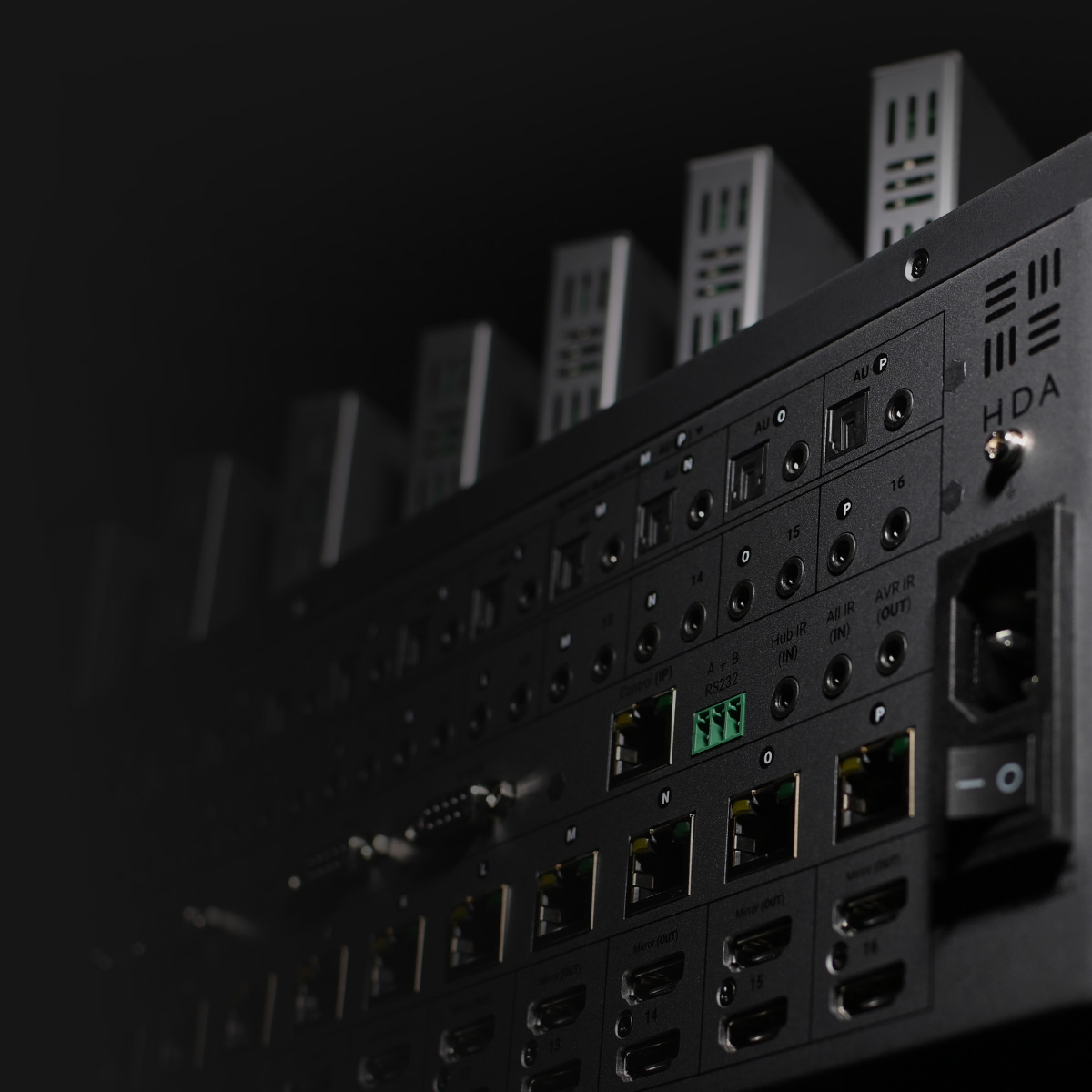

Gallery.

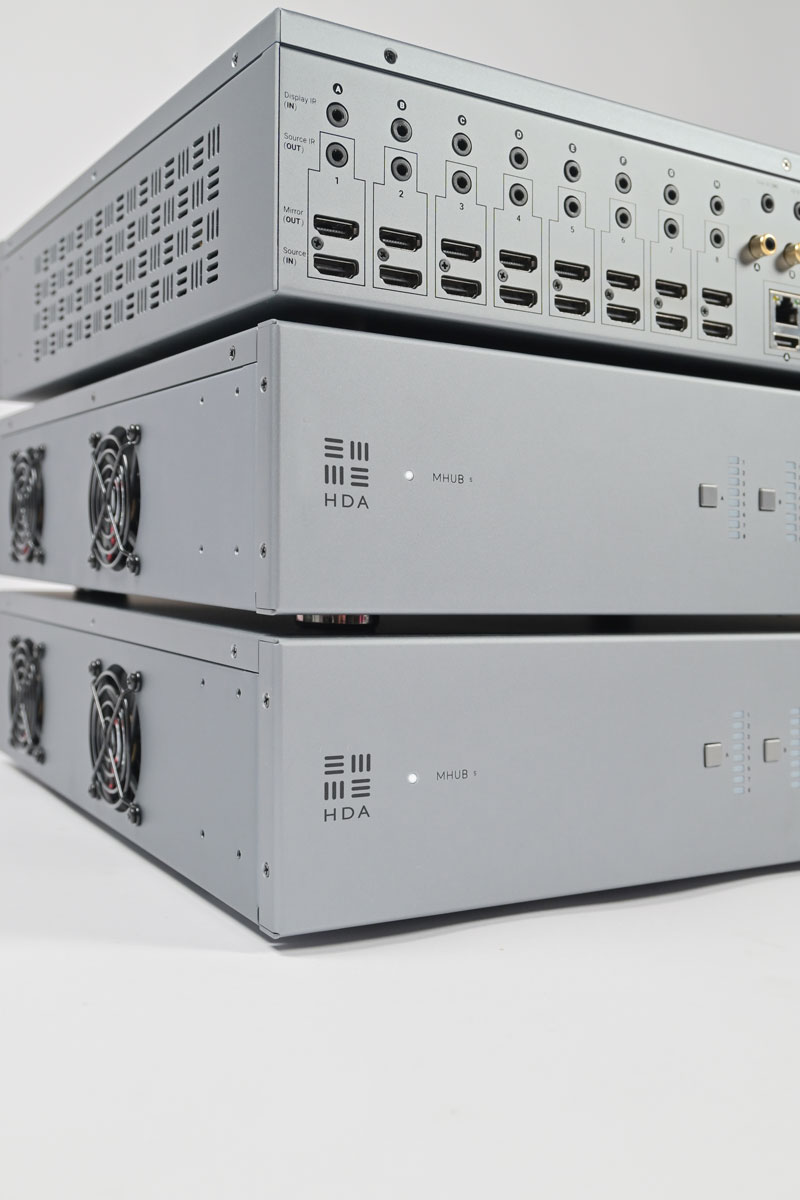

MHUB S delivers and manages media and music throughout large installations without compromising performance or user experience. Whether the project requires 16 or 160 displays, stack your way to success with multiple MHUB S.
Options.
Large Home or Commercial
MHUB S (8+8x8) 100A
-
tv_remote tabletControl8 Zones (uControl inside)
-
inputInputs8x Video + 8x Mirror
-
tv_genOutputs8x HDBaseT | 2x HDMI Mirror
-
SpeakerAudio Outputs + Control8x Stereo/Optical Mirror
-
straightenRange100m / 328ft (4K)
-
workspace_premiumWarranty5 Years*
Large Home or Commercial
MHUB S (16+16x16) 100A
-
tv_remote tabletControl16 Zones (uControl inside)
-
inputInputs16x Video + 16x Mirror
-
tv_genOutputs16x HDBaseT | 2x HDMI Mirror
-
SpeakerAudio Outputs + Control16x Stereo/Optical Mirror
-
straightenRange100m / 328ft (4K)
-
workspace_premiumWarranty5 Years*
Dolby Downmixing
MHUB S (16+16x16) 100ADM
-
tv_remote tabletControl16 Zones (uControl inside)
-
inputInputs16x Video + 16x Mirror
-
tv_genOutputs16x HDBaseT | 2x HDMI Mirror
-
SpeakerAudio Outputs + Control16x Stereo/Optical Mirror
-
straightenRange100m / 328ft (4K)
-
workspace_premiumWarranty5 Years*
uControl inside.
uControl Remote.
Your magic wand to control media, music and mood in any space.
uControl app.
Manage the media, music and mood throughout a space from your Apple device.
uControl Wall Mode.
Smart Switch.
Familiar-sized touch panel for convenient and instant control of entertainment, lighting and shading presets.
Apple Watch.
Quick access to all uControl Smarts from your wrist.
Apple Homepod.
Enhanced voice commands with Apple Siri.
Works with leading control systems.
MHUB integrates effortlessly with Control4, Crestron, RTI, URC, and more. Whether expanding an existing system or starting fresh, our powerful, free drivers make integration simple, fast, and reliable. Search all drivers here.
