Features
| HDMI® 2.0 features supported up to 18Gbps |
| Display receiver powered via PoH |
| IR over HDMI injector dongle included |
| Web GUI for easy config and setup (MHUB-OS) |
| Remote system monitoring (HDA Cloud) |
| Advanced EDID management |
| Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision® |
| Supports all current audio formats up to and including Dolby Atmos® and DTS:X® |
| Multichannel audio or stereo extraction via optical, or via 3.5mm stereo jack |

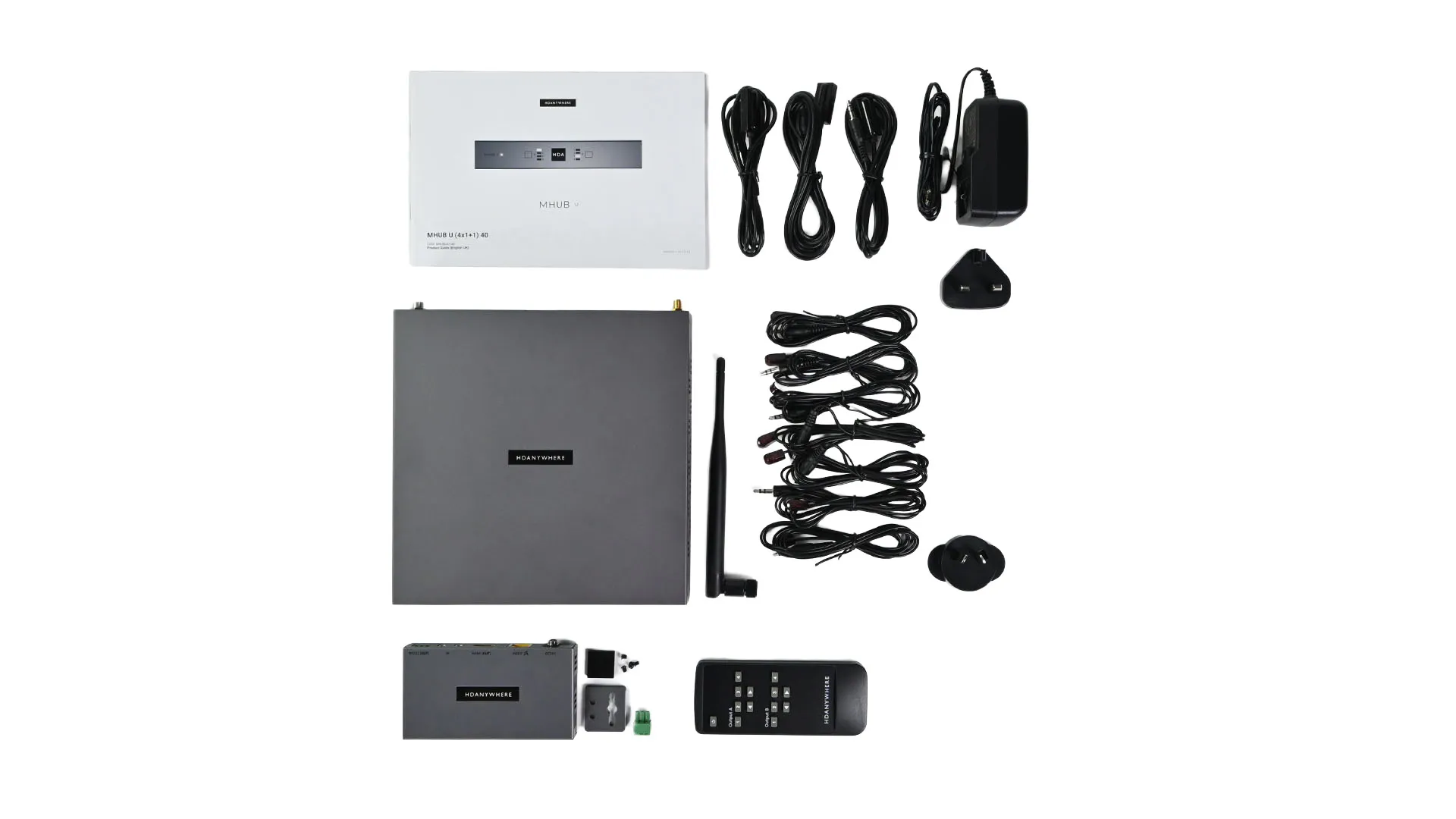

| Sold as a complete install package, with Receiver, IR cables included. |
Specification
| Form factor | Compact unit. Mountable with optional mounting wings |

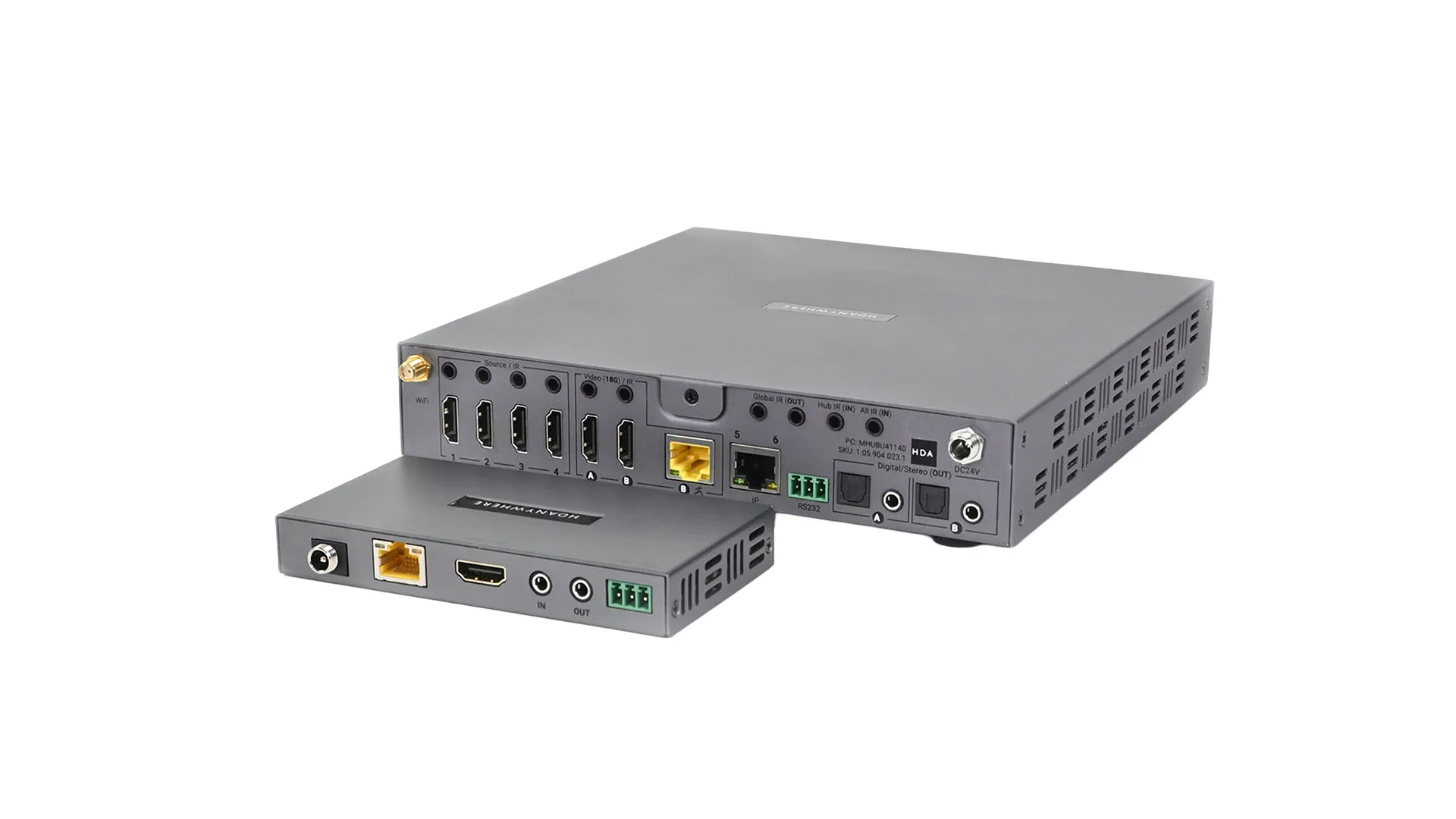

| Inputs x outputs | 4 HDMI x 1 RJ45 HDBaseT + 1 HDMI + 1 mirrored HDMI |
| Video bandwidth | HDMI backplane 594MHz clock / 18Gbps data HDBT 340MHz clock / 10.2Gbps data |
| ESD protection | ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
| Hub control | Web GUI, IR, TCP/IP, RS232, App, Alexa |
| App control | Full control over sources, matrix hub & display functions. |
| Device weight | Chassis: 1250g Receiver: 125g |
| Package weight | 2000g |

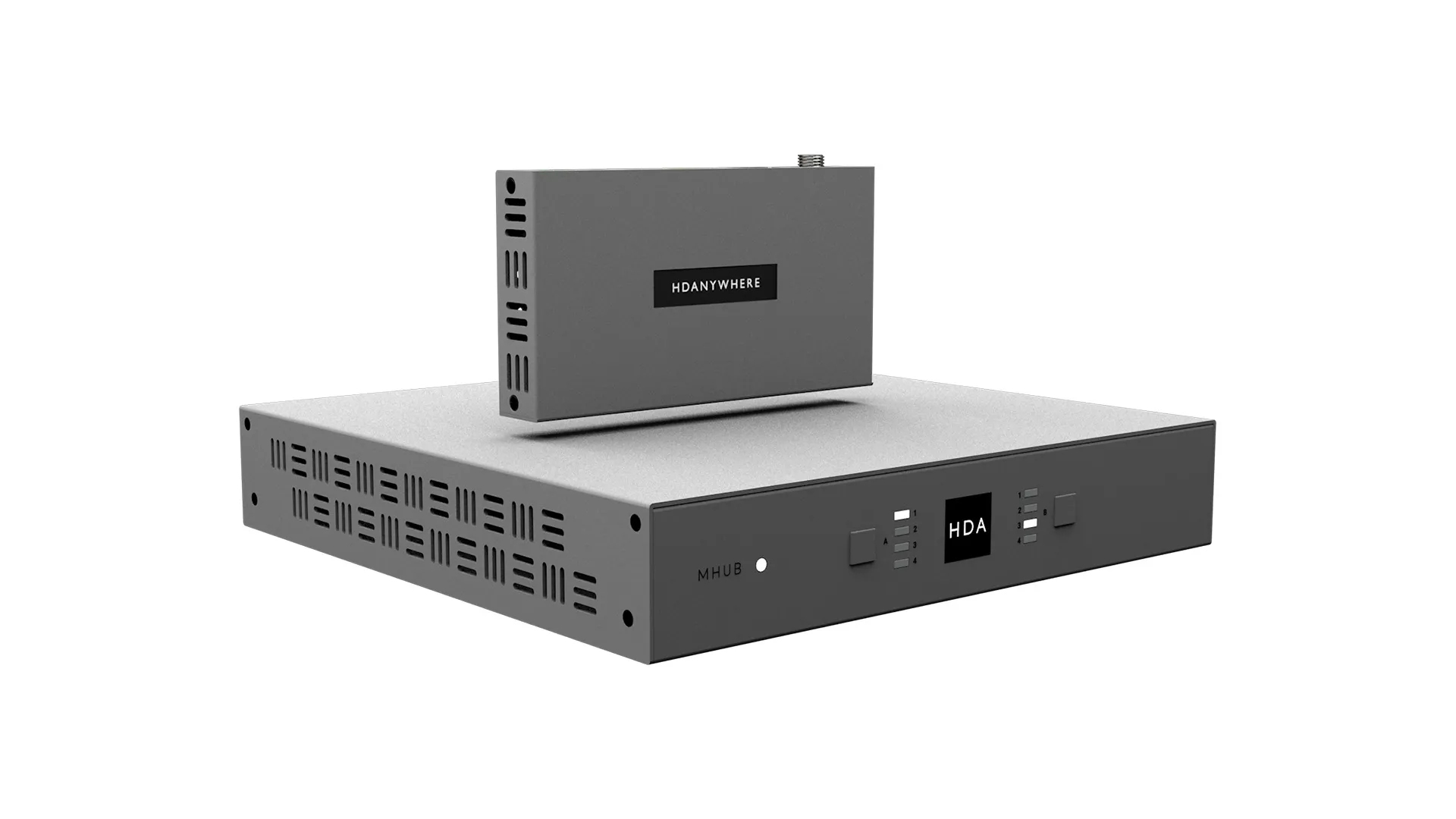

| Dimensions (W/D/H) | Hub 220 / 200 / 45mm (without feet) RX 140 / 65 / 17mm |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative humidity | 20~90 % RH (non-condensing) |
| Power consumption | 30W (max) 0.5W (standby) |
| Guarantee | 2/3-year guarantee (Cloud registration required) |
uControl inside.
uControl Remote.
Your magic wand to control media, music and mood in any space.
uControl app.
Manage the media, music and mood throughout a space from your Apple device.
uControl Wall Mode.
Smart Switch.
Familiar-sized touch panel for convenient and instant control of entertainment, lighting and shading presets.
Apple Watch.
Quick access to all uControl Smarts from your wrist.
Apple Homepod.
Enhanced voice commands with Apple Siri.
Works with leading control systems.
MHUB integrates effortlessly with Control4, Crestron, RTI, URC, and more. Whether expanding an existing system or starting fresh, our powerful, free drivers make integration simple, fast, and reliable. Search all drivers here.
