Features
| x1 HDMI CEC control port |
| x1 two-way RS232 serial comms port |
| x5 IR outputs |
| Access to uControl service including IR database |
| Instant Alexa Voice control |
| WiFi enabled for concealed or hard to reach areas |
| Customisable via HDA API |
| uOS on board "uControl Remote Ready" |

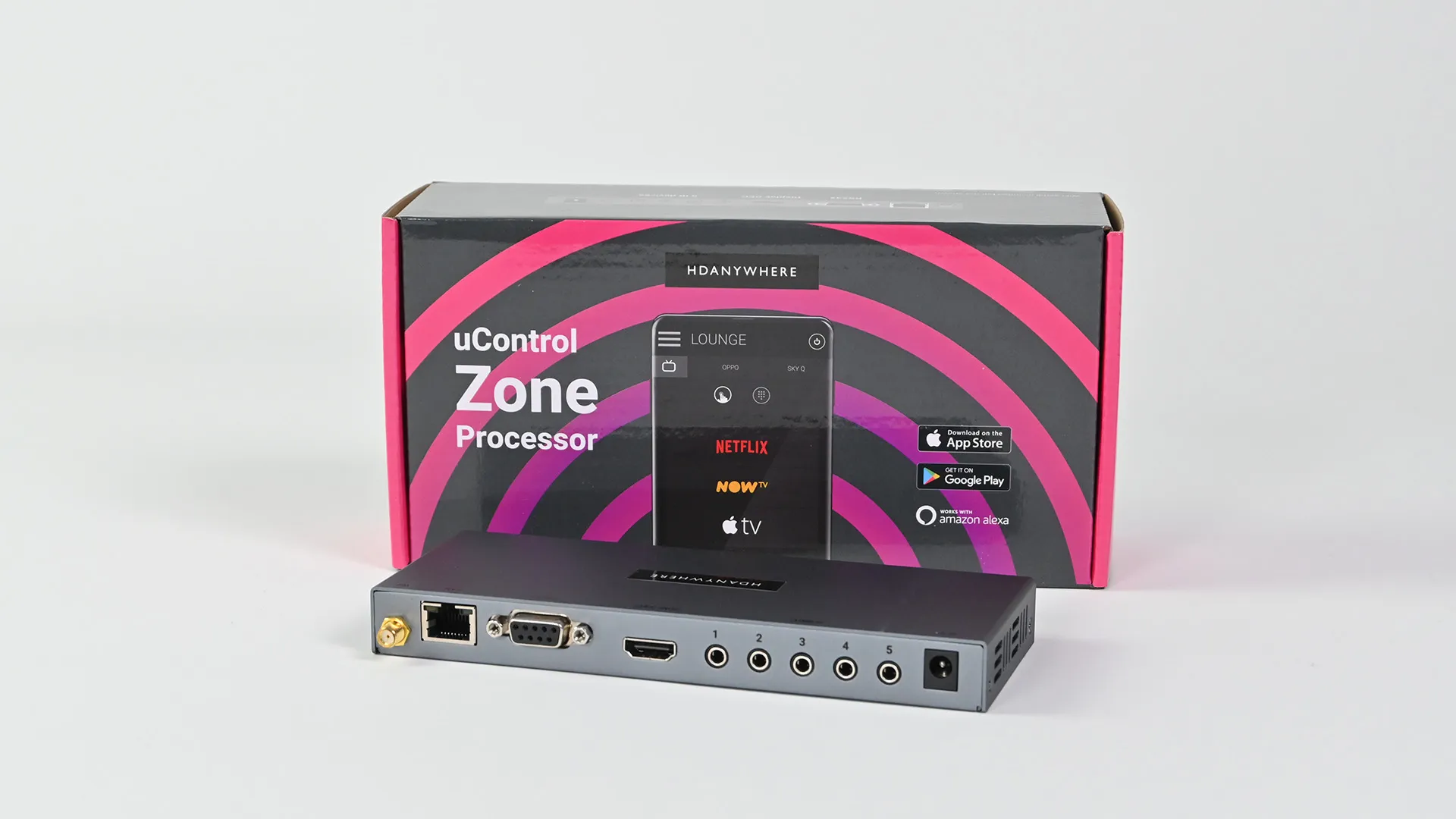

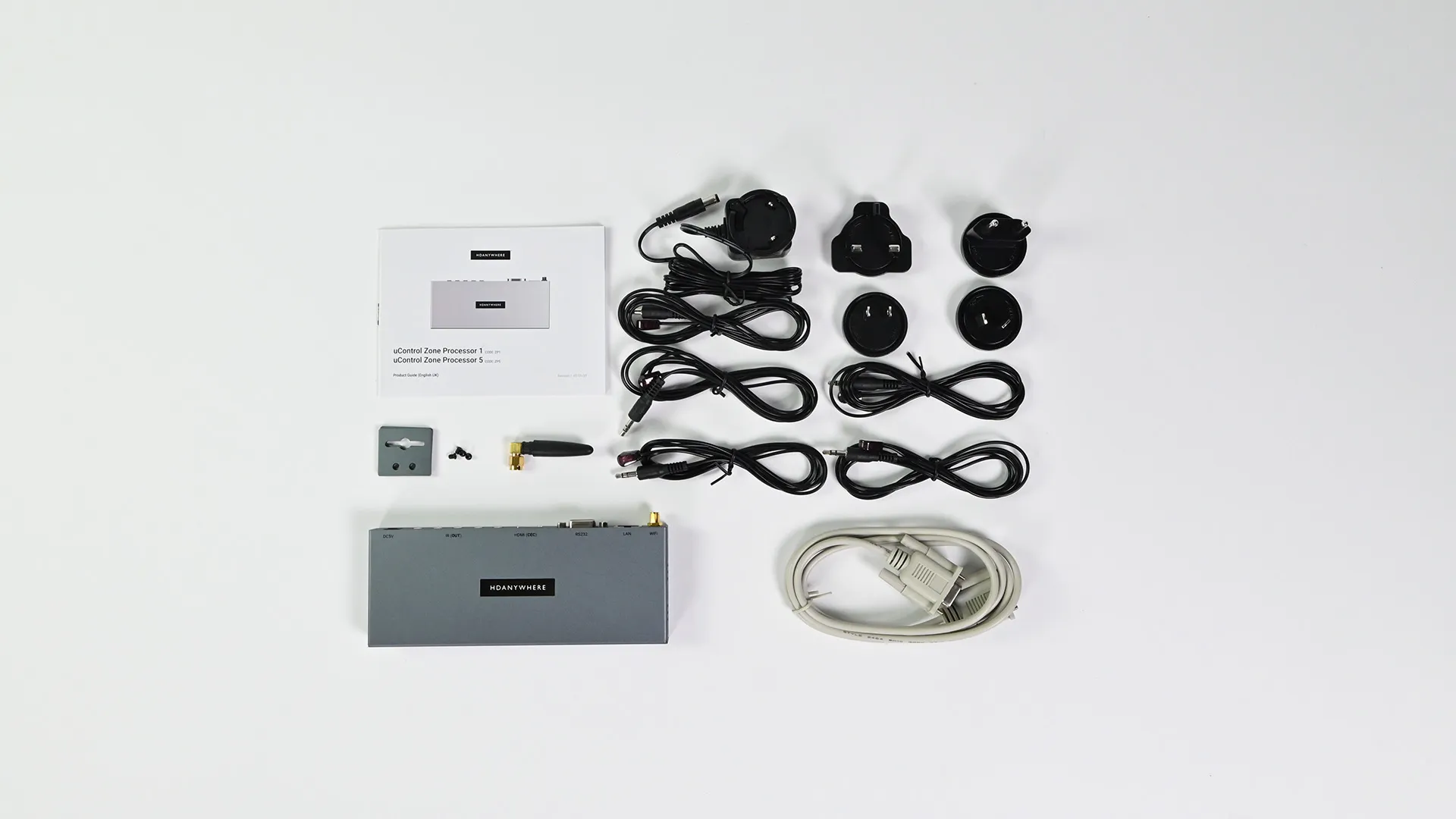

| Sold as a complete package, IR cables and mounting kit included. |
Specification
| Form factor | Lightweight slender aluminium enclosure |

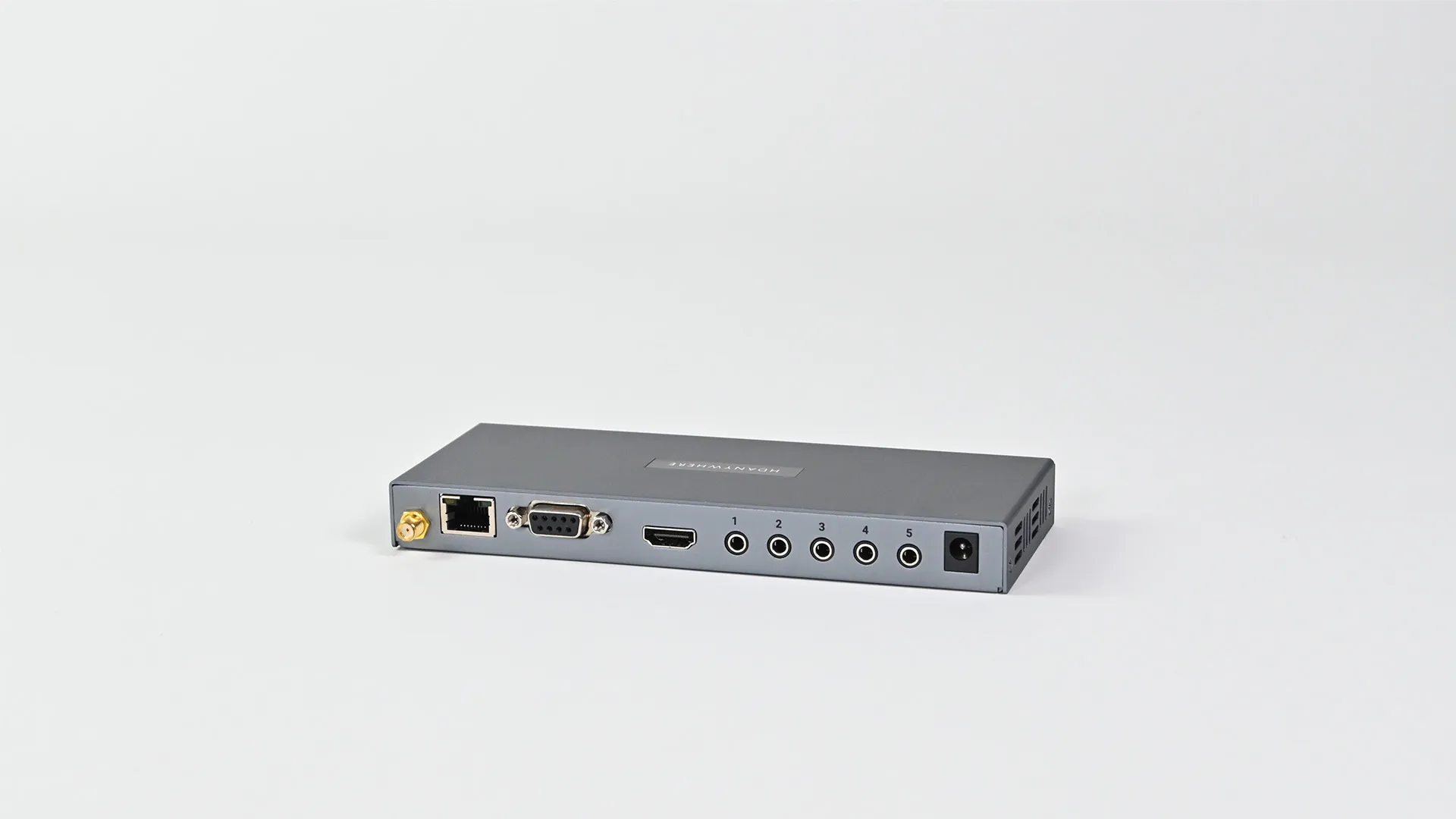

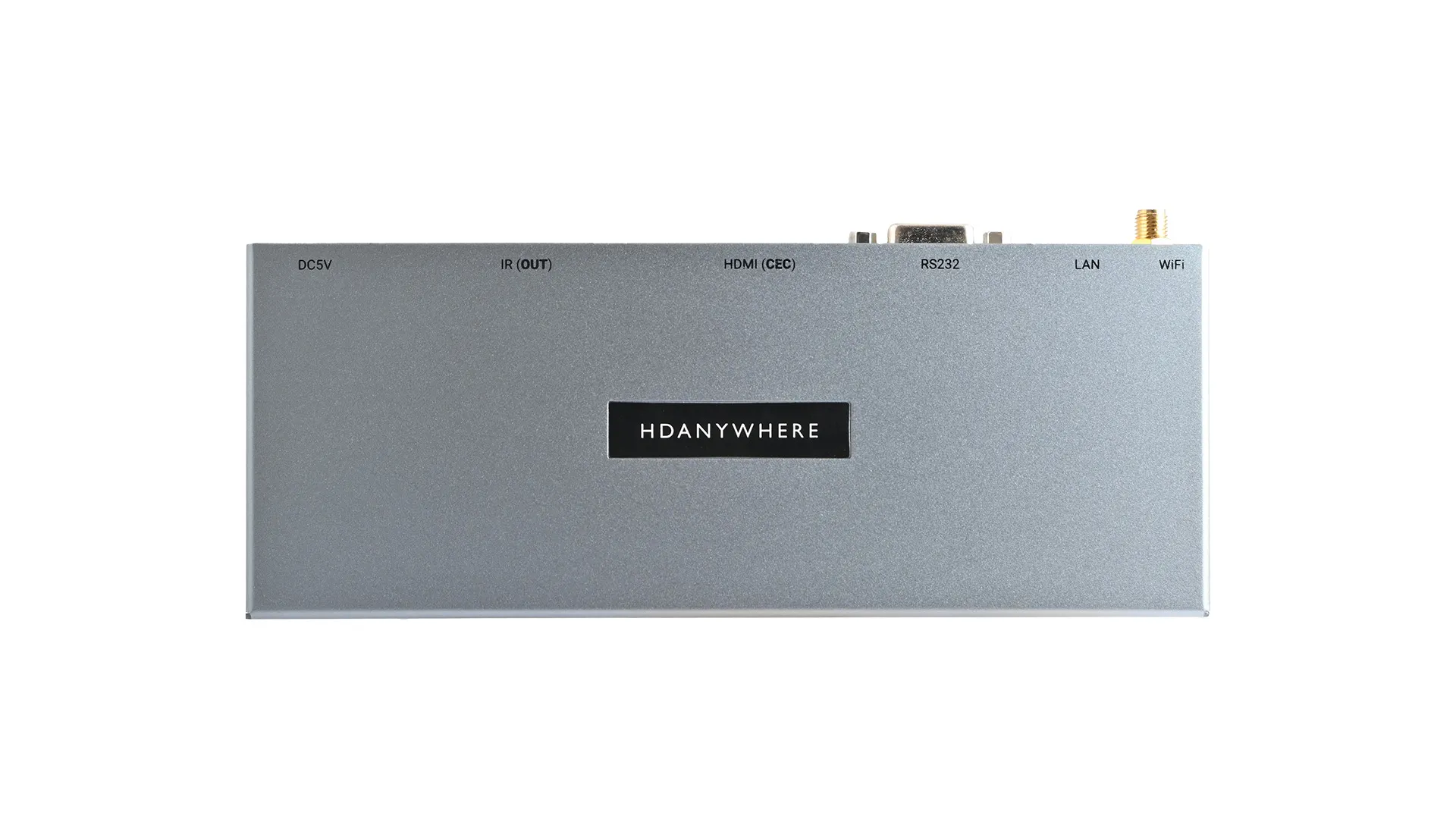

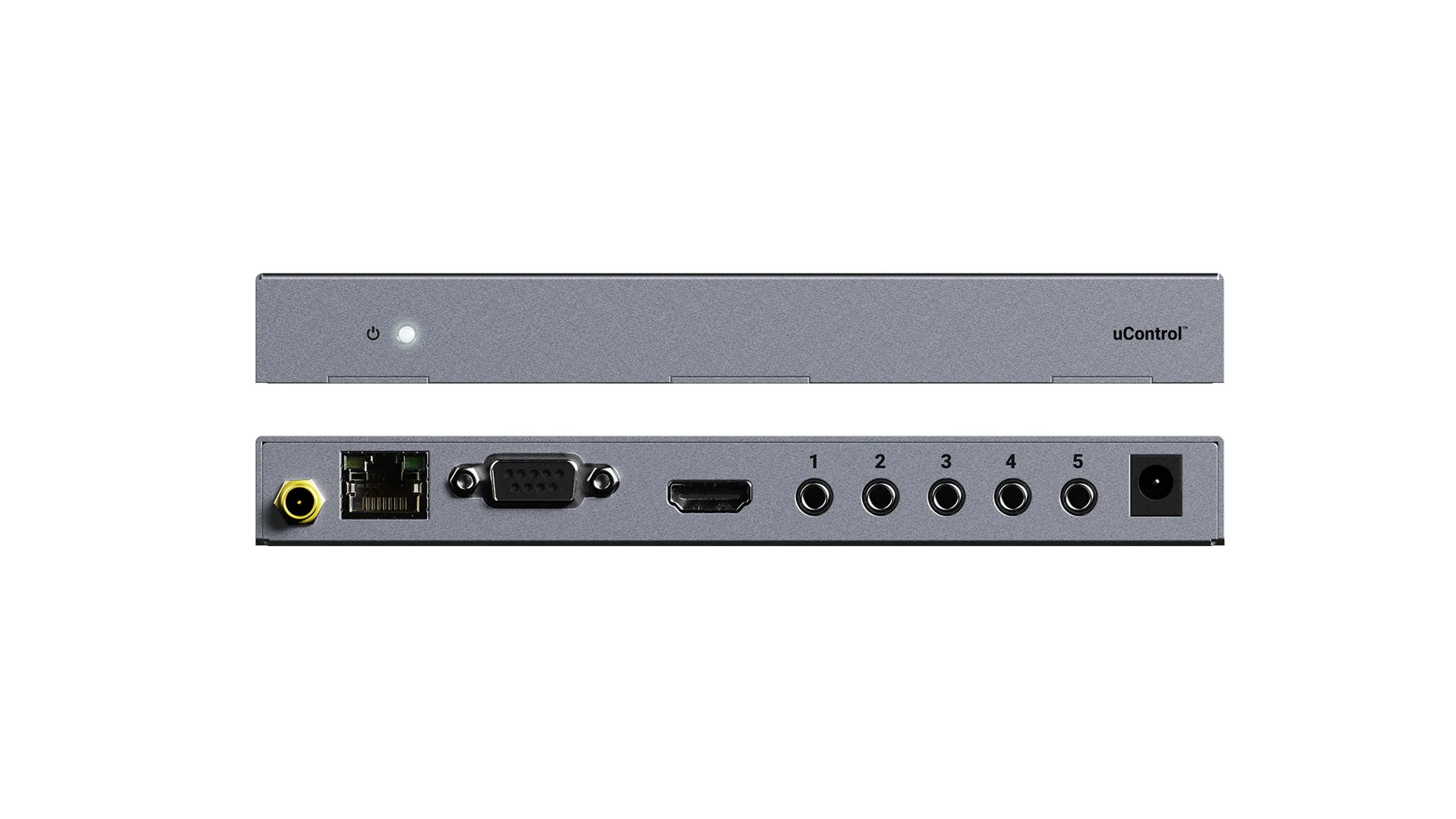

| Control Outputs | 1 HDMI (CEC), 1 RS232, 5 IR |
| Comms Method | IP (API), uControl, Expanded IO drivers (TBC) |
| Comms Method | IP (API), uControl, Expanded IO drivers (TBC) |
| ESD protection | ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
| Device / Package weight | 195 / 1100 g |
| Dimensions (W/D/H) | 176 / 68.5 / 20mm |
| Power | DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Operating temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative humidity | 20~90 % RH (non-condensing) |
| Power consumption | 2W |
| Guarantee | 2-year guarantee |
uControl inside.
uControl Remote.
Your magic wand to control media, music and mood in any space.
uControl app.
Manage the media, music and mood throughout a space from your Apple device.
uControl Wall Mode.
Smart Switch.
Familiar-sized touch panel for convenient and instant control of entertainment, lighting and shading presets.
Apple Watch.
Quick access to all uControl Smarts from your wrist.
Apple Homepod.
Enhanced voice commands with Apple Siri.
Works with leading control systems.
MHUB integrates effortlessly with Control4, Crestron, RTI, URC, and more. Whether expanding an existing system or starting fresh, our powerful, free drivers make integration simple, fast, and reliable. Search all drivers here.
