Features
| 18G (600MHz) HDMI® 2.0 and HDCP 2.2 compatible |
| Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision® |
| Supports all current audio formats including Dolby Atmos® and DTS:X® |
| HDBaseT 2.0 with PoH |
| Internal video scaling (4K>1080p on every output) |
| Internal 12x4 audio matrix switcher with flexible grabbing audio (source or display HDMI- ARC) via digi coax, or audio downmix via stereo jack |
| Internal uControl IO expander universal controller |
| Control paths via TCP/IP, two-way IR and RS232 |
| Backlit fade in/out touch panel controls |
| App/web GUI for easy config (MHUB-OS) with remote management (HDA Cloud) |

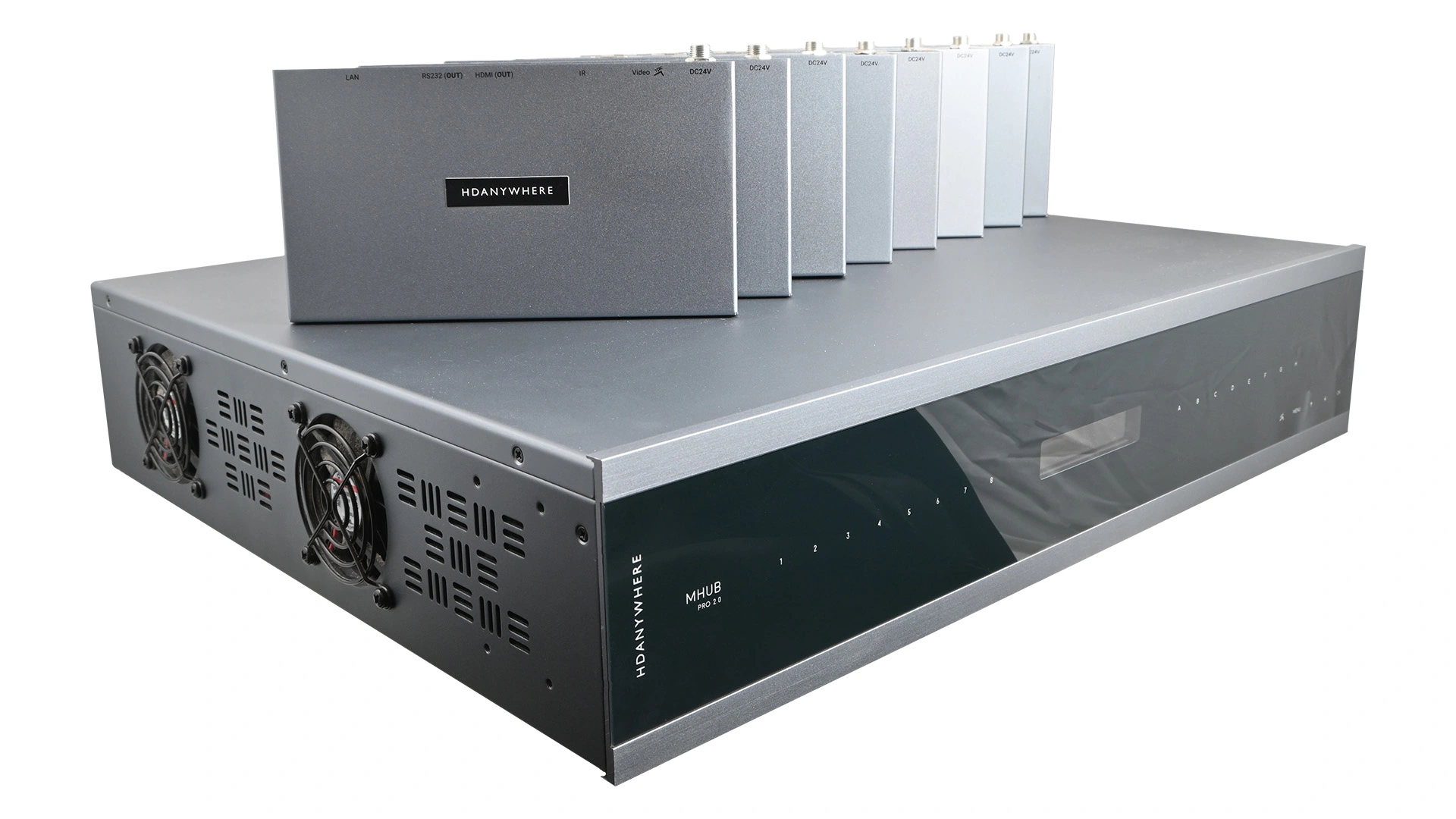

| Sold as a complete install package, with all receivers,IR cables and mounting kit included. |
Specification

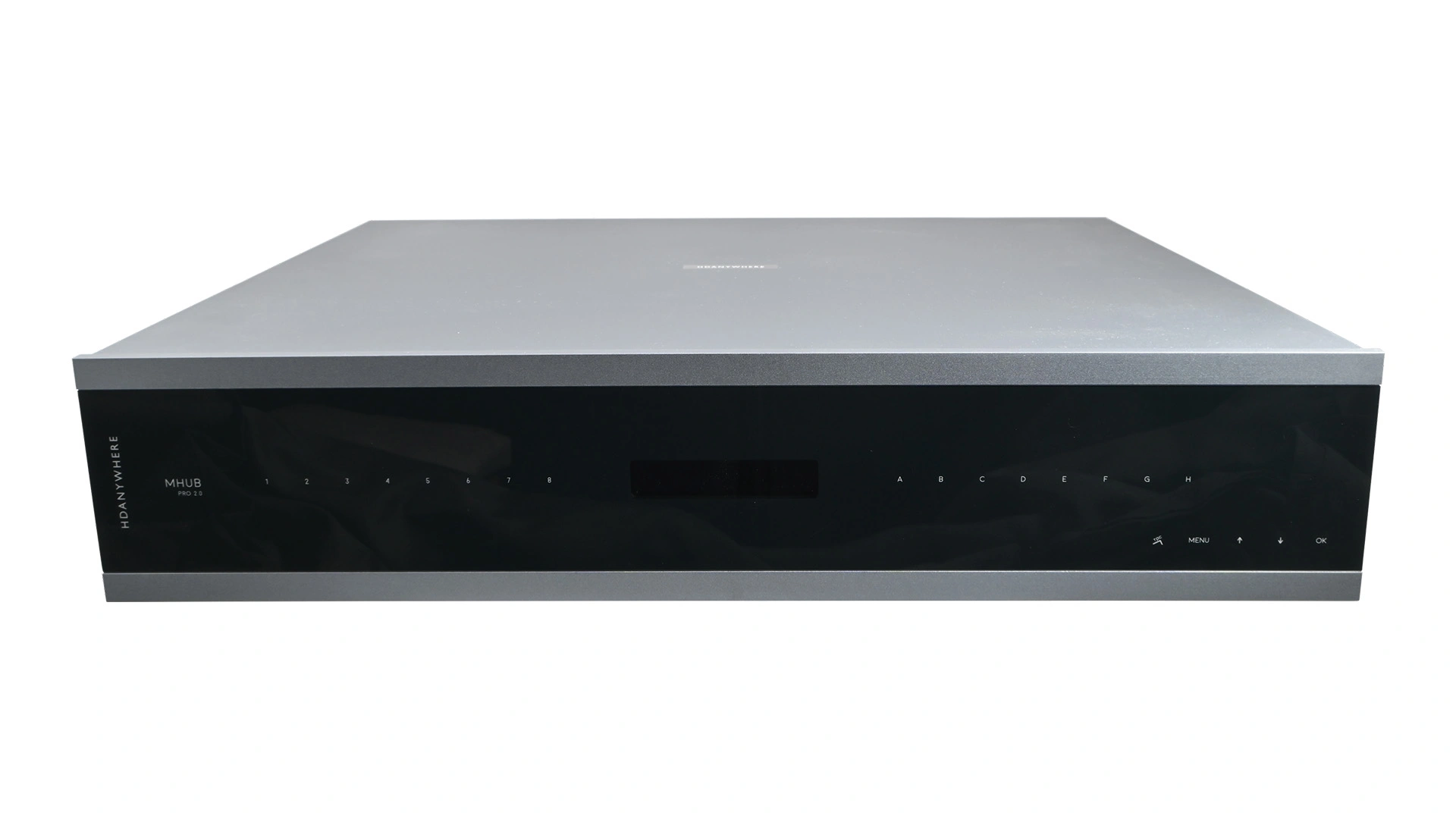

| Form Factor | 19”/2U aluminium rack-mountable unit |

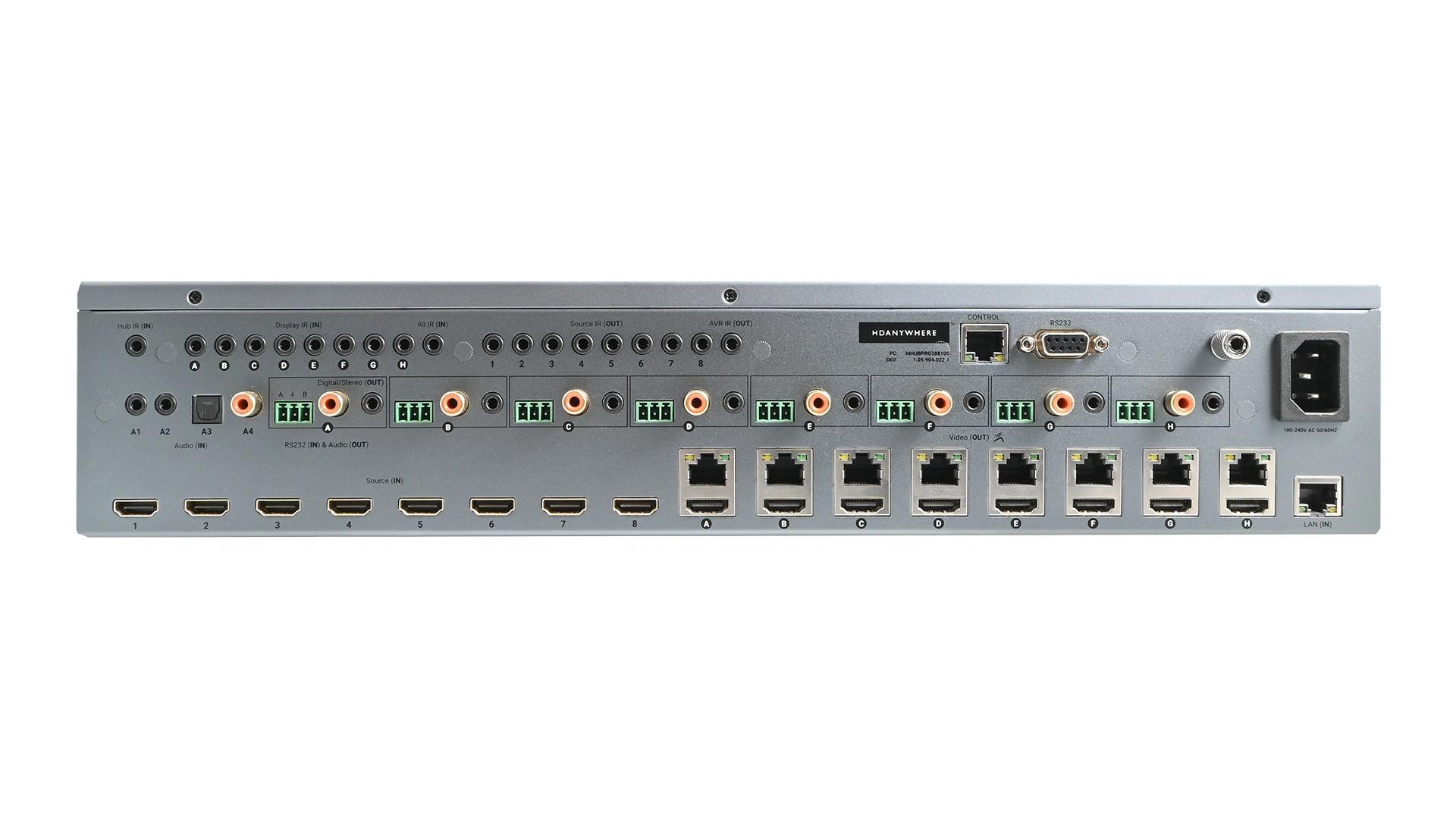

| Inputs x outputs | 8 HDMI x 8 RJ45 HDBaseT + 8 mirrored HDMI |
| Transmission tech. | HDBaseT 2.0 (VS2000) + TPC |
| Video bandwidth | HDMI backplane 594MHz clock / 18Gbps data HDBT 340MHz clock / 10.2Gbps data |
| ESD protection | ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
| Hub control | Web GUI, IR, TCP/IP, RS232, App, Alexa |
| App control | Full control over sources, matrix hub & display functions. |
| Device weight | Hub 4600g RX 192g |
| Package Weight | 8500g |
| Dimensions (W/D/H) | Hub 440 / 380 / 90mm (without feet) RX 163 / 94 / 19mm |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative humidity | 20~90 % RH (non-condensing) |
| Power consumption | 30W (max) 0.5W (standby) |
| Guarantee | 3/4-year guarantee (Cloud registration required) |
uControl inside.
uControl Remote.
Your magic wand to control media, music and mood in any space.
uControl app.
Manage the media, music and mood throughout a space from your Apple device.
uControl Wall Mode.
Smart Switch.
Familiar-sized touch panel for convenient and instant control of entertainment, lighting and shading presets.
Apple Watch.
Quick access to all uControl Smarts from your wrist.
Apple Homepod.
Enhanced voice commands with Apple Siri.
Works with leading control systems.
MHUB integrates effortlessly with Control4, Crestron, RTI, URC, and more. Whether expanding an existing system or starting fresh, our powerful, free drivers make integration simple, fast, and reliable. Search all drivers here.
